T-800 / T-2000 / T-3000 Microphone Wiring

Diagrams below are viewed from solder side of plug

T-800 / T-2000 / T-3000 Wiring

Key

• T = Transmit
• C = Common (or Screen)
• A = Mic Audio
• U = Up
• D = Down
• ASQ = Auto-Squelch

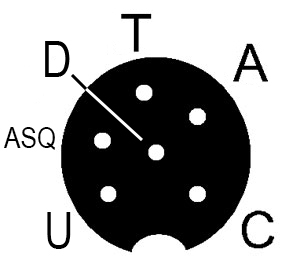

6 pin plug pinout
